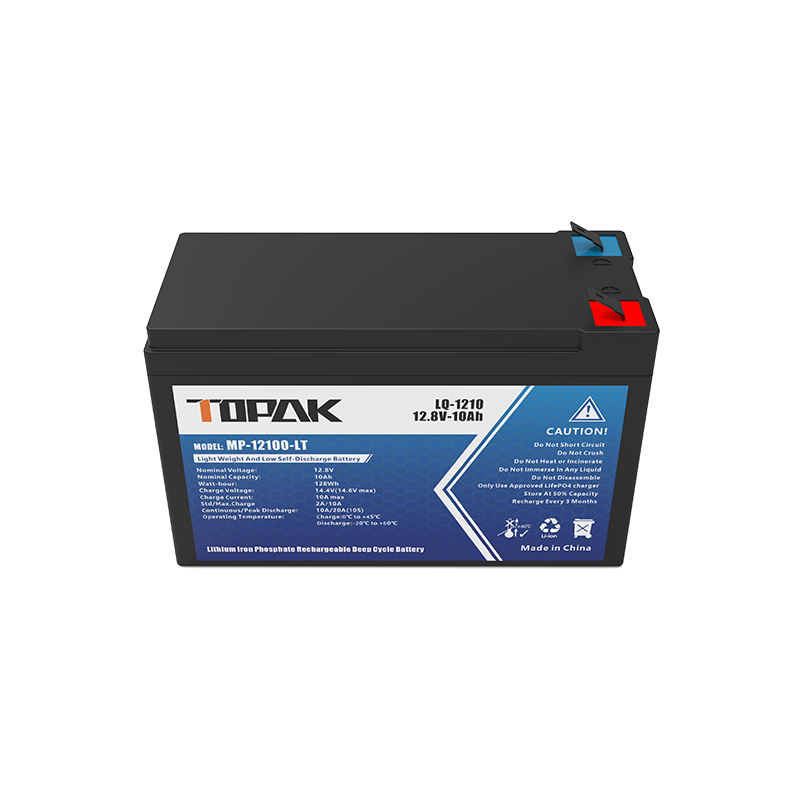

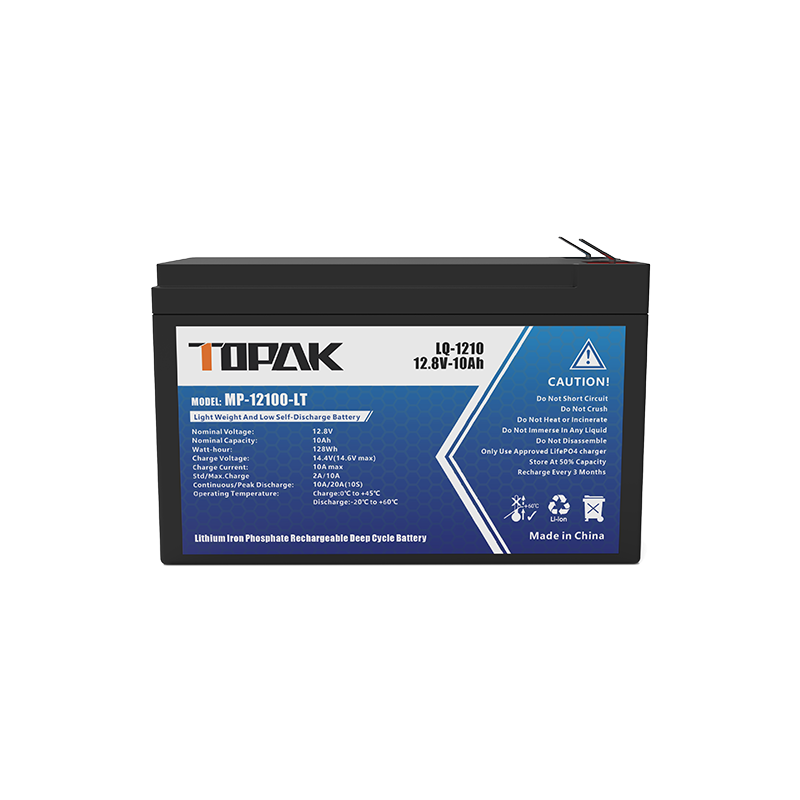

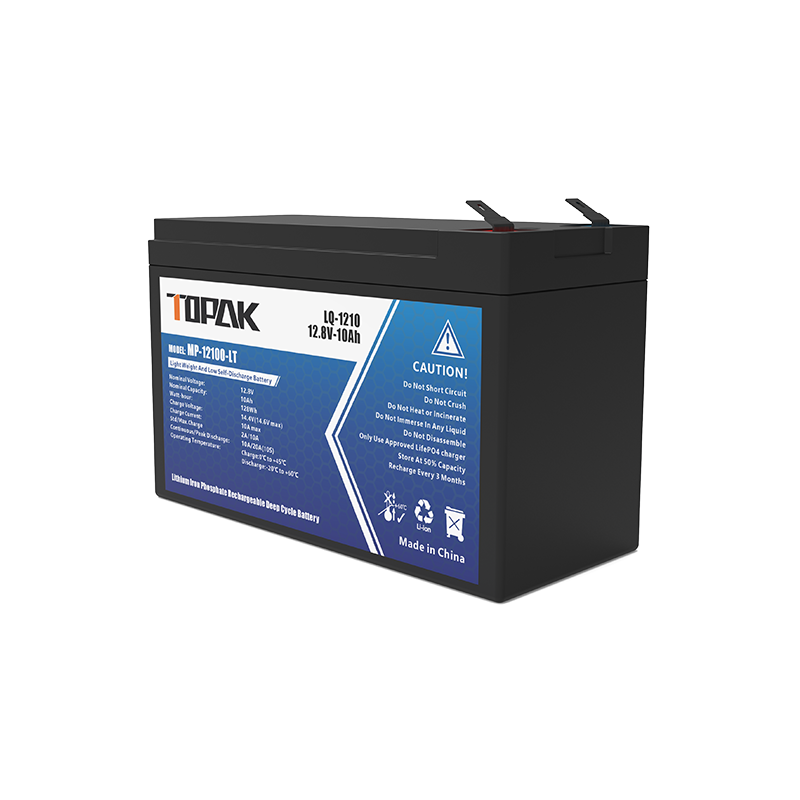

TOPAK-12V 10Ah 20A 128Wh
| Operating Voltage(V) |
10.8~14.6
|
| Nominal voltage(V) | 12.8 |
| Nominal Capacity(Ah) | 10 |
| Mix. capacity(Ah) |
≥9.6
|
| Nominal Energy(Wh) |
128
|
| Maximum power output(W) |
256
|
| Maximum charge voltage(V) |
14.6±0.2
|
| Float charge voltage(V) |
13.5~13.8
|
| Cut-off voltage(V) |
9.6~10.8
|
| Standard charge current(A) |
2
|
| Recommended charge current(A) |
≤4
|
| Allowed Max. charge current(A) | 10 |
| Standard discharge current(A) | 2 |
| Recommended discharge current(A) |
≤10
|
| Allowed Max. discharge current(A) |
20
|
| Peak discharge current@10S(A) | 40 |
| Internal Resistance(mΩ) |
≤40
|
| Charging temperature(℃) |
0~55
|
| Discharge temperature(℃) | -20~60 |
| Cycles(25℃,0.5C,80%DOD) | >6000 |
| Combination structure of battery |
4S
|
| Protection class | IP65 |
| System weight(kg) |
Approx. 1.2
|
| Product size(L*W*H,mm) |
151*65*94
|
| Packing size(L*W*H,mm) |
182*95*128
|
| Application Areas: | electric tool, electric toy, light, and other fields |
